Description

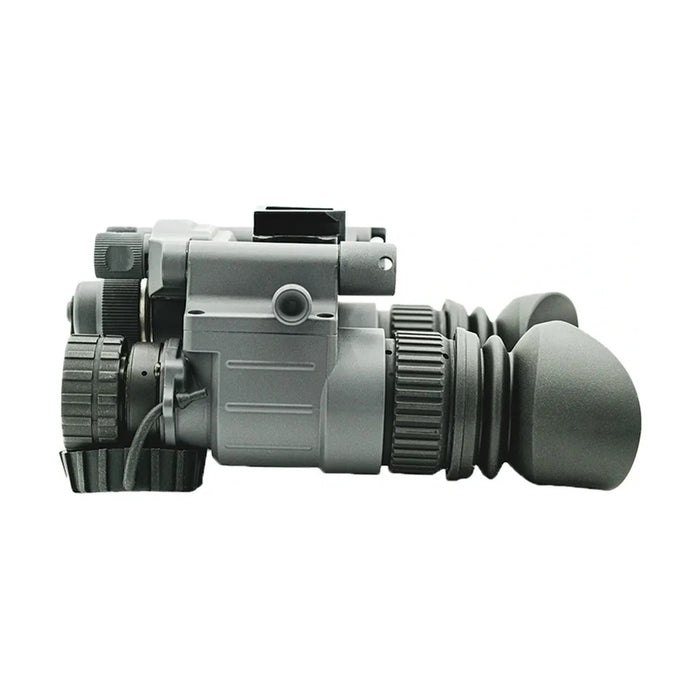

armasight night vision goggles Armasight BNVD-40 Gen 3 Pinnacle 2000 FOM Night Vision Goggle9 The Gen 3 Pinnacle BNVD 40 Night Vision binocular is exclusively available with Ghost White Phosphor Image Intensifier Tubes, the preferred choice of elite special operators across the globe, and come equipped with a built in infrared (IR) illuminator. The BNVD 40 allows you to navigate low light areas and even read in complete darkness. This true dual channel night vision goggle is available in a 40 degree field of view (FOV) version. Armasight
9
The Gen 3 Pinnacle BNVD-40 Night Vision binocular is exclusively available with Ghost White Phosphor Image Intensifier Tubes, the preferred choice of elite special operators across the globe, and come equipped with a built-in infrared (IR) illuminator. The BNVD-40 allows you to navigate low-light areas and even read in complete darkness. This true dual-channel night vision goggle is available in a 40-degree field of view (FOV) version.
Armasight night vision products are encased in a tough yet compact housing that is both fog and water-resistant. The BNVD-40 Night Vision Binocular is designed to meet or exceed performance standards of military and law enforcement professionals, allowing you to maintain maximum situational awareness while navigating, observing, and tracking moving objects and vehicles.
Additional mounting options (sold separately) allow you to use the BNVD-40 as helmet-mounted night vision goggles, adding the ability to quickly and easily move them out of the way in an instant. The BNVD articulates, allowing for it to be configured for use as a monocular over either eye, preserving your biological night vision in one eye if desired.
The manual gain control lets you adjust the brightness level to your personal preference, and if the ambient light level exceeds the limits of the BNVD, the automatic protective system will shut off the Image Intensifier Tubes(ITT) to prevent damage while observing under changing light conditions.
Accomplish your mission with complete confidence using the Armasight BNVD-40.
ITAR PRODUCT
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.
Key Features
- Exclusively Ghost White Phosphor Image Intensifier Tubes: Equipped with high-performance Ghost White Phosphor tubes, preferred by elite special operators for superior image clarity and contrast.
- Built-In Infrared (IR) Illuminator: Allows navigation in low-light conditions and the ability to read in complete darkness.
- True Dual-Channel Design: Features a dual-channel configuration for optimal performance, with a 40-degree field of view (FOV) version for enhanced situational awareness.
- Rugged Fog- and Water-Resistant Housing: Designed for durability and reliability in demanding environments, ensuring long-lasting performance.
- Helmet-Mounting Capability: Compatible with additional mounting options (sold separately), enabling hands-free use and quick repositioning when needed.
- Articulating Binocular Design: Configurable as a monocular over either eye, preserving biological night vision in one eye when desired.
- Manual Gain Control: Adjust the brightness level to suit your preference for enhanced visibility and comfort.
- Automatic Protective System: Shuts off the Image Intensifier Tubes (IIT) when exposed to excessive ambient light, protecting the unit from damage.
-
Designed for Military and Law Enforcement Standards: Built to meet or exceed the requirements of professionals, offering reliable performance in critical situations.
Package Includes
- 1x BNVD-40 Night Vision Goggle
- 1x Lens Caps
- 1x Eyecups
- 1x Sacrificial Windows
- 1x Demist Shields
- 1x NVG (Dovetail) Interface Shoe
- 1x Bayonet/Horn Interface Shoe
- 1x Battery Key
- 1x Lens Cloth
- 1x Soft Carrying Case
- 1x CR123A battery
- 3 year limited warranty with registration
- Product Manual
Specifications
| Specification | Details |
|---|---|
| Image Intensifier Tube Generation | Gen 3 Thin-Filmed Manual Gain Control |
| Resolution | 64-81 lp/mm |
| Zone 1 Spots Maximum Allowed | No spots of 0.003" or greater allowed |
| Zone 2 Spots Maximum Allowed | 0 - 0.009" to 0.012" 1 - 0.006" to 0.009" 2 - 0.003" to 0.006" |
| Zone 3 Spots Maximum Allowed | 0 - 0.009" to 0.012" 2 - 0.006" to 0.009" 3 - 0.003" to 0.006" |
| Manual Gain Control | Yes |
| Bright Light Cut-off | Yes |
| Infrared Illuminator | Yes (Built-in) |
| IR Indicator | Yes (in FOV) |
| Magnification | 1x |
| Lens System | F1.2; 27mm |
| Field of View | 40° |
| Focus Range | 0.25 yard/m to infinity |
| Eye Relief | 25mm |
| Exit Pupil | 14mm |
| Diopter Adjustment | -6 to +2 dpt |
| Power Supply | 1 x CR123A (3V) or 1 x AA (1.5V) Battery |
| Battery Life | 12 Hours (1.5V) 20 Hours (3V) at 20° C |
| Low Battery Indicator | Yes (in FOV) |
| Environmental Rating | IP67 |
| Operating Temperature | -51° C to +49° C -60° F to +120° F |
| Storage Temperature | -51° C to +85° C -60° F to +185° F |
| Dimensions | 137 x 73 x 118mm 5.4 x 2.8 x 4.6in |
| Weight | 0.64kg 1.4lbs |
| Color | Gray |
| SKU | NSGNYX15M4G9DX2 NSGNYX15M4G9DH2 |
Warranty
3 Year Warranty with registration
More about Armasight Gen 3 Image Intensifier Tubes
The best combination of price and performance. Our Pinnacle Image Intensifier Tubes have almost 50% less blemishes than our Bravo tubes, as well as a minimum of 2000 FOM. Zone 1 is kept completely clear of blemishes, giving you a great picture of your target of interest. Designed for a more experienced end-user, NV systems with Pinnacle IITs can be found in the hands of law enforcement, hunters, and enthusiasts.
Our Pinnacle 2376 FOM Image Intensifier Tubes share the same great picture quality as our Pinnacle tubes, but guarantee a minimum of 2376
